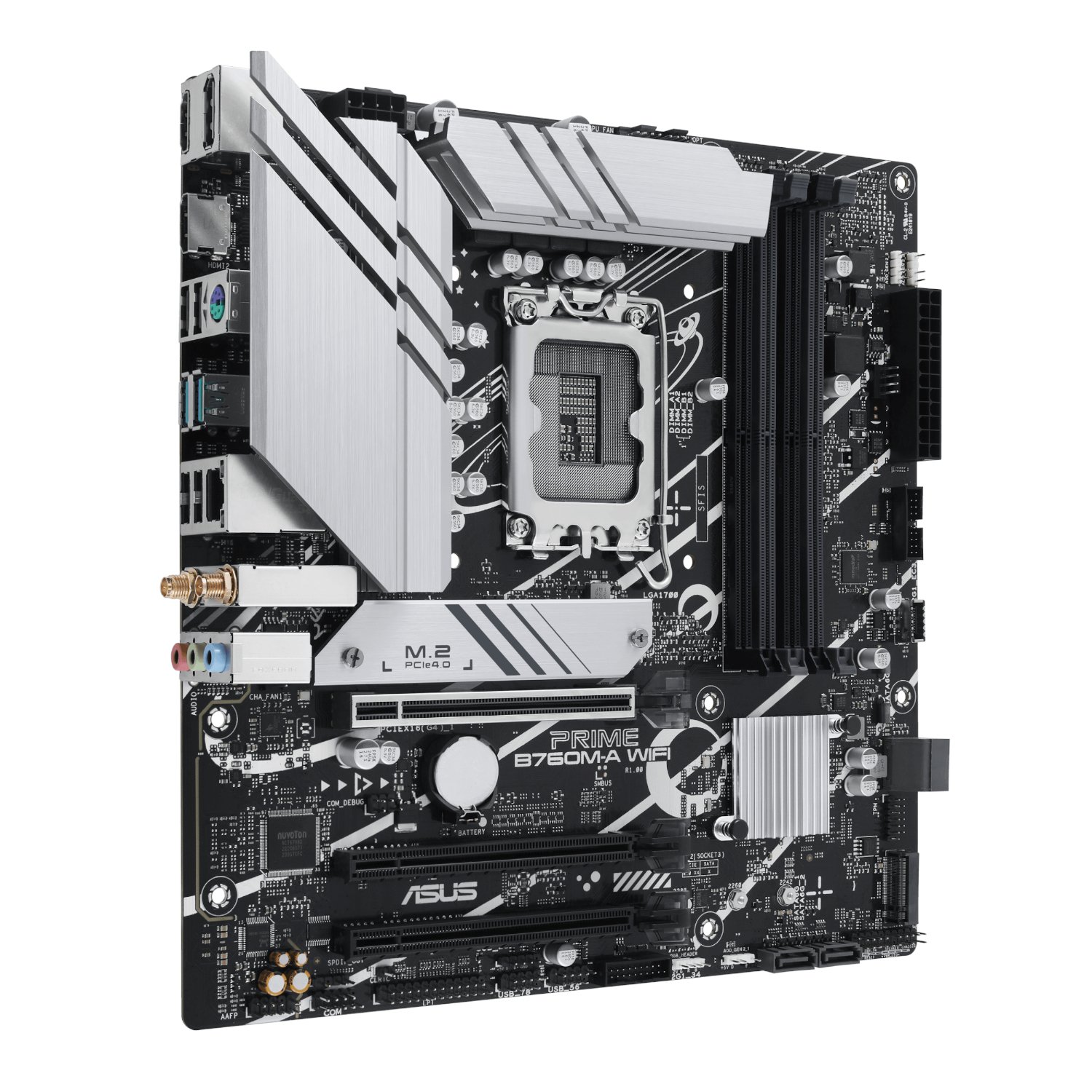

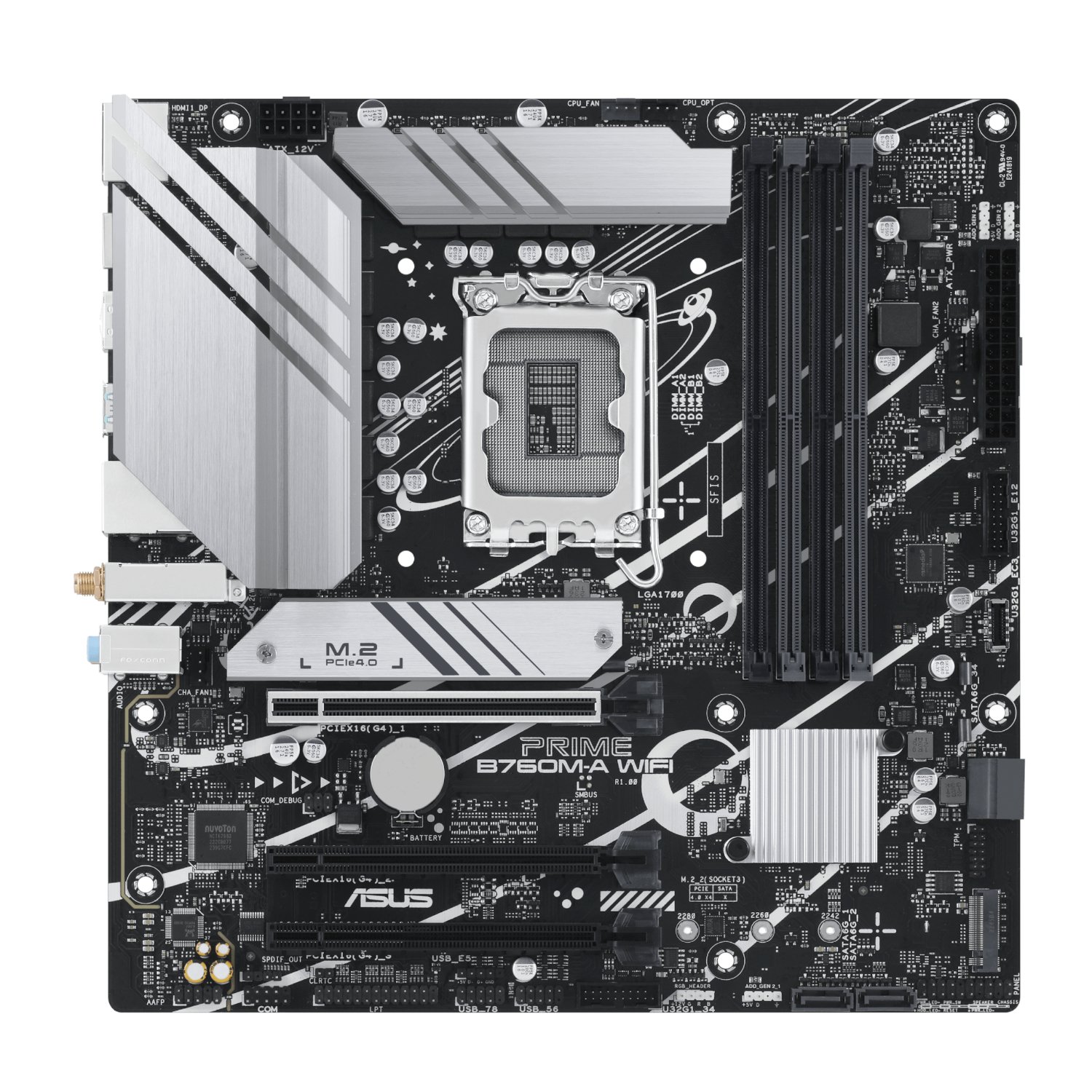

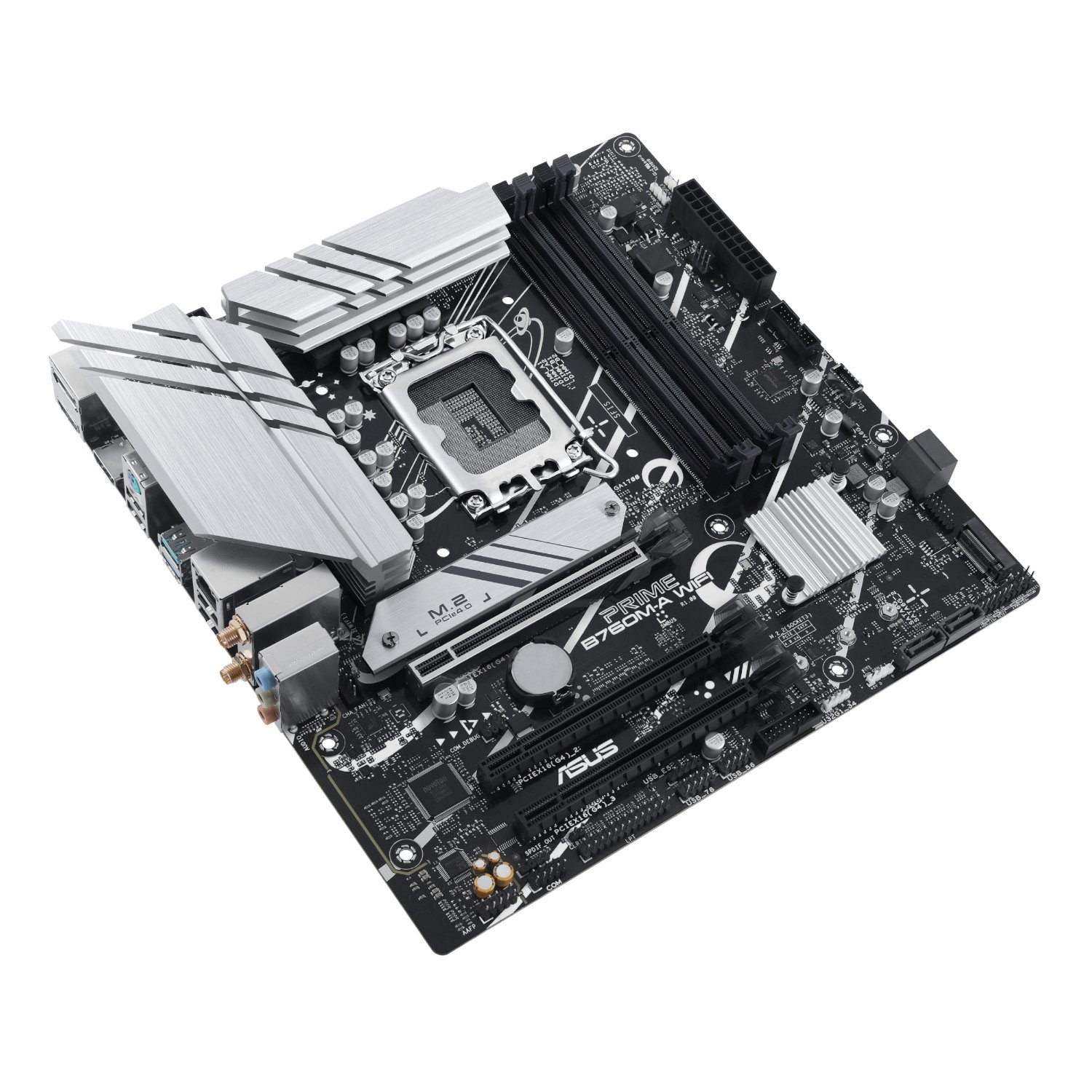

Asus PRIME B760M-A WIFI Intel LGA1700 M-ATX Motherboard

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans. PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal. VRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chocks for better cooling performance.

PRIME B760 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS. Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

The PRIME B760 series are built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options. Stable power is essential to extract every last bit of performance out of Intel® processors. The PRIME B760M-A WIFI is geared to cater to the demands of these high-core-count CPUs.

FEATURES:

• Micro-ATX Form Factor
• Intel® B760 Chipset
• Supports Intel® 13th and 12th Gen Desktop Processors
• Support for DDR5 up to 7200+MT/s, AEMPIII
• PCIe 4.0 support for graphics cards
• Wi-Fi 6 and 2.5Gb Ethernet support for faster data transfer

SPECIFICATIONS:

• Socket: Intel Socket LGA1700
• CPU: Supports Intel® 13th and 12th Gen Intel® Desktop Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
• Chipset: Intel® B760 Chipset
• DDR5 Memory: Support DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, ASUS OptiMem II supported
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 192
• PCI-E 4.0 x16: 1
• PCI-E 4.0 x1: 1
• SATA 6G: 4
• M.2 Slot: 2
• RAID: Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
• LAN: Realtek 2.5Gb Ethernet
• Wireless and Bluetooth: Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth v5.2

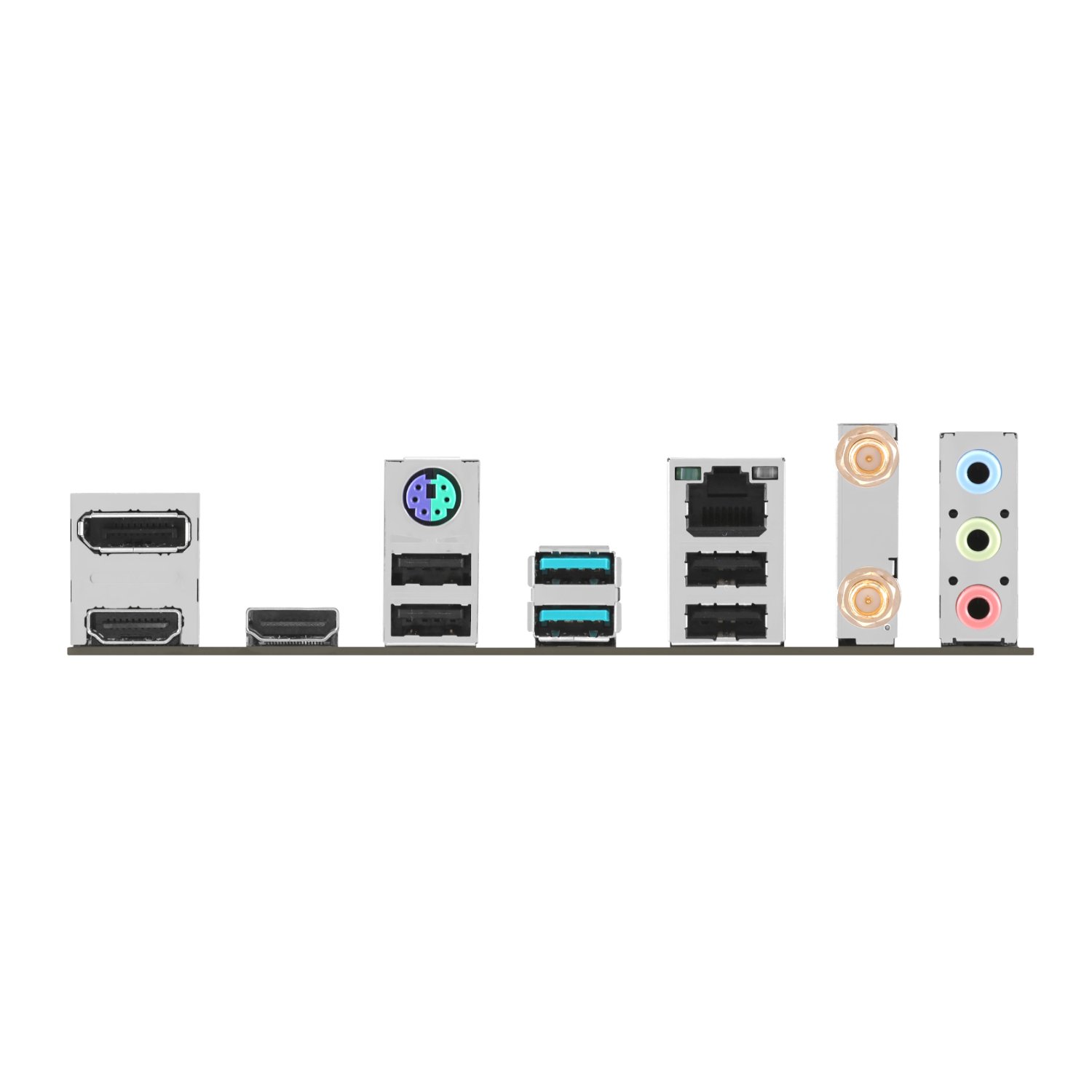

• USB Ports Rear:
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A )
  • 4 x USB 2.0 ports (4 x Type-A)
• USB Ports Front:
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port
• Audio ports (Rear): Realtek 7.1 Surround Sound High Definition Audio CODEC
• HDMI: 2
• DisplayPort: 1
• DirectX: 12
• Form Factor: Micro-ATX
• Operating System: Support for Windows® 11, Windows® 10 64-bit

WHAT’S IN THE BOX:

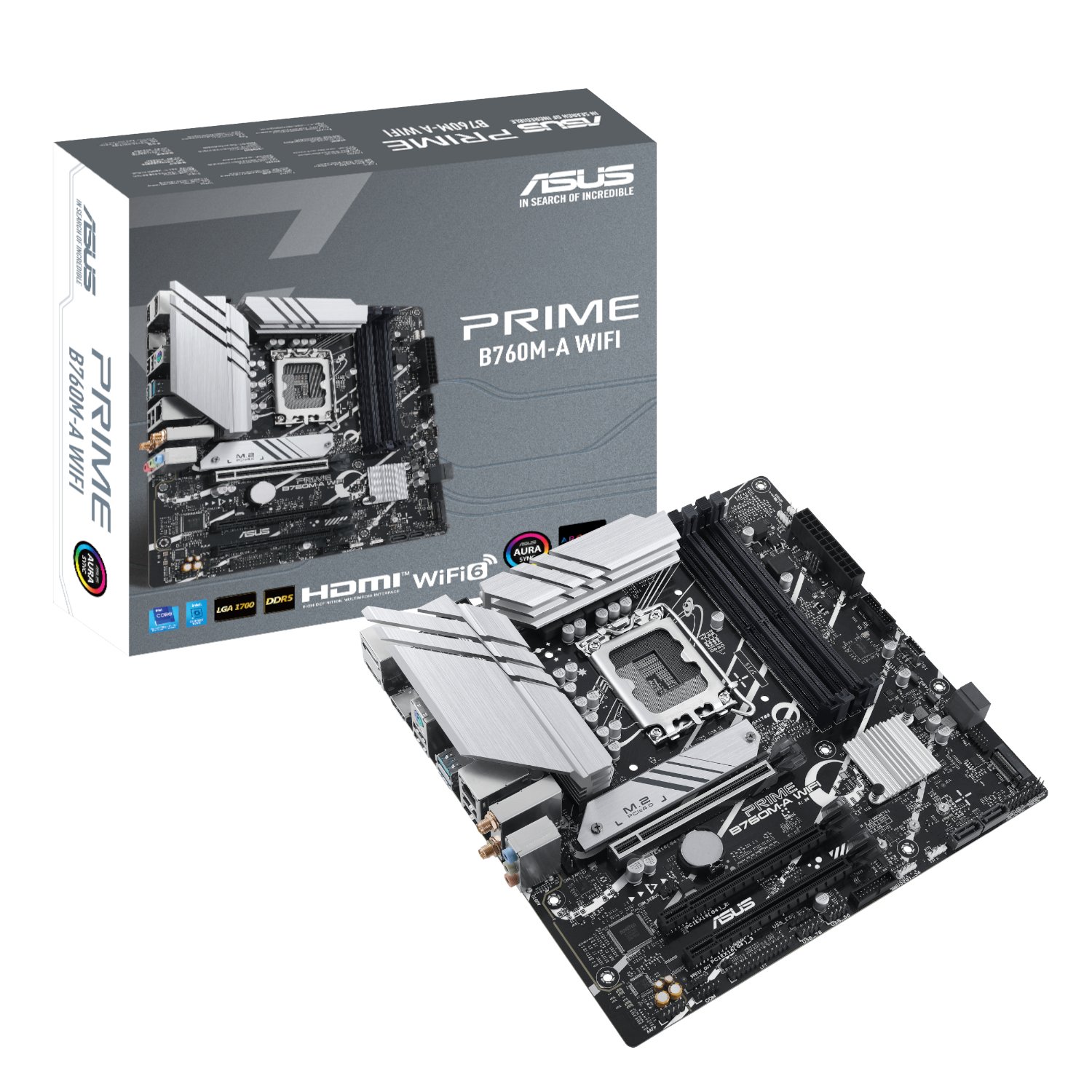

• Asus PRIME B760M-A WIFI Intel LGA1700 M-ATX Motherboard – Black x1
• SATA Cables x2
• Asus Wi-Fi Adjustable Antenna x1
• I/O Shield x1
• M.2 Rubber Package x1
• Screw Package for M.2 SSD x1
• User Guide x1
